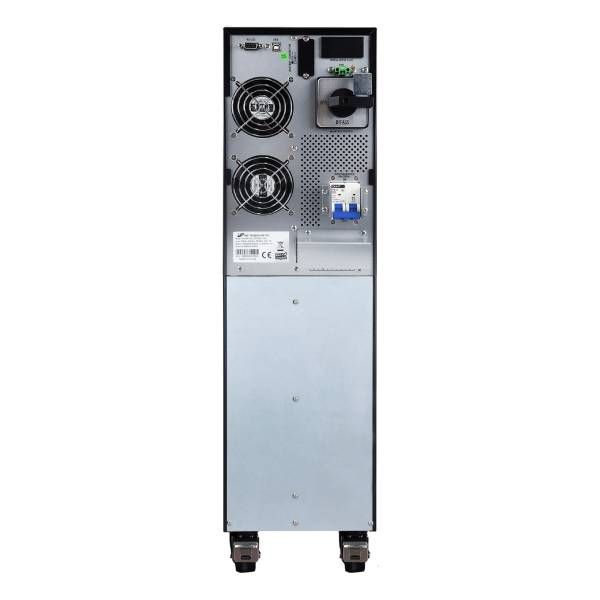

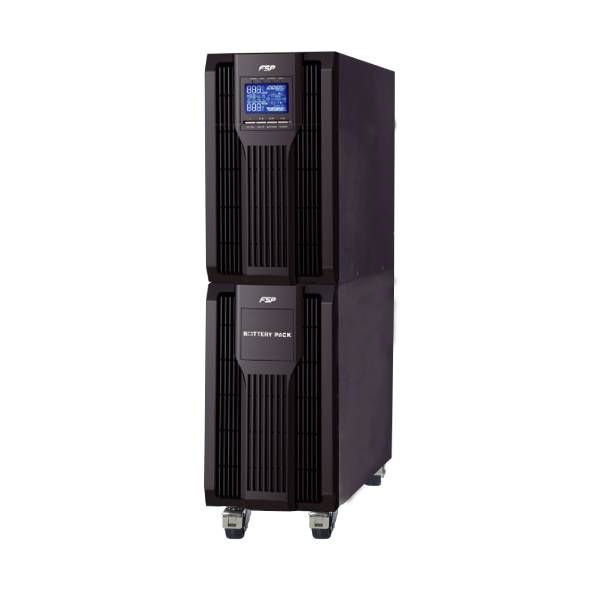

Model:Champ TW 10K
-
Capacity:10000 VA / 9000W
-
Input:Input Voltage Range 110-300 VAC (50% load), 176-300VAC (100% load);Input Frequency 46Hz ~ 54Hz or 56Hz ~ 64Hz;Power Factor ≥ 0.99 @ Nominal Voltage (100% load)
-
Output:Output Voltage 208/220/230/240 VAC;AC Voltage Regulation ±1%;Output Frequency Range 46Hz ~ 54Hz or 56Hz ~ 64Hz;Current Crest Ratio 3:1;Harmonic Distortion ≤ 3 % THD (Linear Load), ≤ 5 % THD (Non-linear Load);Output Transfer Time (Typical) Zero (AC to D...
-
Alarms:Battery Mode Sounding every 4 seconds;Low Battery Sounding every second;Overload Sounding twice per second;Fault Continuously sounding
-
Battery:Battery Type 9Ah / 10Ah;Numbers 16 – 20pcs(Adjustable);Charging Current (max) 1A, 2A, 4A, 6A (Adjustable,6A only for 16pcs baterries);Charging Voltage 218.4V ±1%(based on 16pcs batteries)
-
Environment:Humidity 0-95 % RH @ 0- 40°C (non-condensing);Noise Level Less than 58dB @ 1 Meter
-
Standarts:Safety / EMC IEC 62040-1(Safety) / IEC 62040-2 (EMC) / CE
-
Dimensions:442 x 190 x 318mm (DxWxH)
-
Other:Management Supports Windows® 98/XP/2000/Vista/7/8/10, Windows® Server 2000/ 2003/ 2008/ 2012/ 2016, Linux, and MAC
