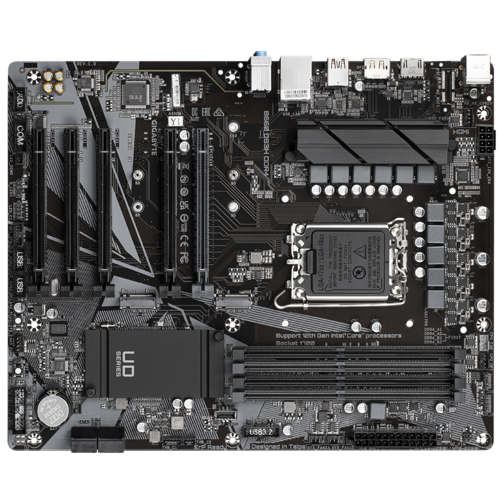

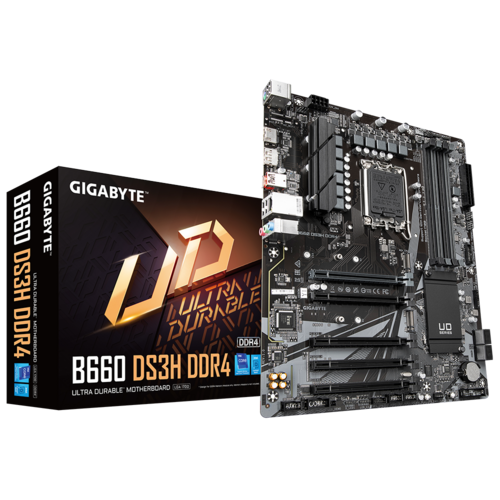

GB B660 DS3H DDR4

Марка: GIGABYTE
Код:

B660 DS3H DDR4 / B660 DS3H DDR4 1.0

Изпрати на приятел

Оцени продукта

Сравни

222.39 лв.

Chipset:

Intel® B660 Express Chipset
Memory type:

Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(...
Graphics:

Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support native HDMI 2.1 TMDS compatible ports.; 1 x DisplayPort, supporting a...
OS:

Support for Windows 11 64-bit; Support for Windows 10 64-bit
Expansion Slots:

1 x PCI Express x16 slot, running at x16 (PCIEX16); * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.; (The PCIEX16 slot conforms to PCI Express 4.0 standard.); 4 x PCI Expre...
LAN:

Realtek® GbE LAN chip (1 Gbps/100 Mbps)
CPU's supported:

LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*;L3 cache varies with CPU
I/O:

1 x PS/2 keyboard/mouse port; 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support; 1 x USB 3.2 Gen 2 Type-A port (red); 4 x USB 2.0/1.1 ports; 1 x HDMI port; 1 x DisplayPort; 1 x RJ-45 port; 3 x audio jacks
Form Factor:

ATX Form Factor; 30.5cm x 24.4cm
Storage:

CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 4 x SATA 6Gb/s connectors; Support for RAID 0, RAID 1...
Connectors:

1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 1 x system fan/water cooling pump header; 2 x addressable LED strip headers; 2 x RGB LED strip headers...
BIOS:

1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
