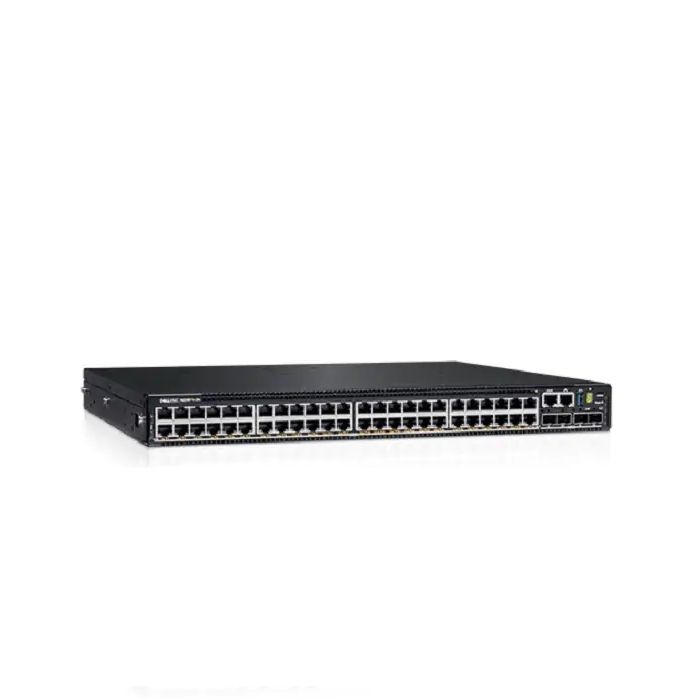

Комутатор Dell EMC PowerSwitch N3248TE-ON, 48x1G, 4x10G SFP+, 2x100G QSFP28, 32GB, 1xAC PSU, IO/PS, OS6, Lifetime Limited Hardware Warranty

Доставка до 150 дни след поръчка.

Марка: DELL
Код:

DNN3248TE

Изпрати на приятел

Оцени продукта

Сравни

11,596.59 лв.

Комутатор Dell EMC PowerSwitch N3248TE-ON, 48x1G, 4x10G SFP+, 2x100G QSFP28, 32GB, 1xAC PSU, IO/PS, OS6, Lifetime Limited Hardware Warranty

Доставка до 150 дни след поръчка.

Други:

1x Micro USB Type-B console port, 1x USB Type-A port, 1x RJ45 serial console port; Two-core Denverton-NS CPU
Гаранция:

99
Сигурност:

RADIUS, TACACS+, 802.1x
Размери (Ш, Д, В), mm:

434 x 400 x 43.5 mm
Захранване:

1x 550W AC PSU
Суич, тип:

Fixed Port
Общ брой портове:

54
Основни портове, тип:

48x 10/100/1000Base-T
Power Over Ethernet (PoE):

-
Uplink портове:

4x 10G SFP+ ports
Свободни (10GB) слотове:

-
Управление:

CLI, Web, SNMP; 1x 10/100/1000BaseT Ethernet management port
Stackable:

2x 100G QSFP28
Fans_TEXT:

Redundant variable speed fans
Fans:

Да
Капацитет за маршрутизиране/превключване, Gbps:

576 Gbps
Пропускателна способност, Mpps:

800 Mpps
MAC адреси:

32K
L2 мрежови стандарти:

802.3ab 802.1ax (Layer 2) 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2) 802.3 802.3ba (40 GbE and 100 GbE) 802.3bt 802.3at 802.3az 802.1v 1613 802.1p, 1q 802.1s 802.3u, 802.3bz, 802.3at, 802.3bt
Опция за монтаж:

Rackmount
Routing:

Line-rate Layer 3 routing (Static routes: 1024 (IPv4)/1024 (IPv6); Dynamic routes: 8158 (IPv4)/4096 (IPv6); RIP routing interfaces: 512, VLAN routing interfaces: 128)
Памет (Flash, RAM):

4 GB DDR4 SO-DIMM, 8 GB mSATA 2.0/M.2 SSD
VLAN (брой, стандарти):

Private VLAN extensions and Private VLAN Edge support; VLAN routing interfaces: 128; VLANs supported: 4094; Protocol-based VLANs: Supported; Max VLAN interfaces with ACLs applied: 24
L3 мрежови стандарти:

RIP, OSPF, VRRP, MIB
IPv6 functionality:

Layer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3
QoS:

DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM
