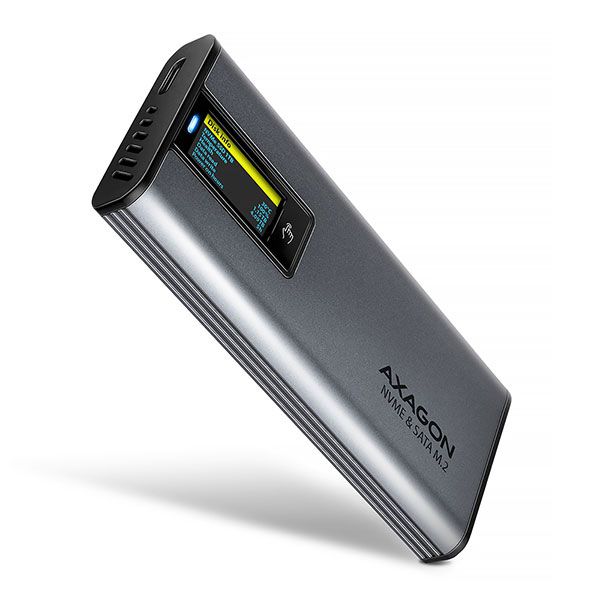

EEM2-SD2 USB-C 10Gbps - M.2 NVMe & SATA SSD DISPLAY box

External USB-C 10Gbps metal box with info display for M.2 NVMe & SATA SSD drives. Screwless.

The external AXAGON EEM2-SD2 DISPLAY box with USB 10Gbps interface is designed for M.2 NVMe or SATA SSD drives . Reliable connection to the computer is enabled by the double-sided USB-C connector on the box. The package includes not only a USB-C -> USB-C cable for connecting the box to the computer, but also a USB-C -> USB-A adapter. You can connect the box to any free USB port on your laptop.

The box is equipped with an advanced LED display that provides an instant overview of the status of your drive . It offers several display modes, including detected connected drive, used system file, temperature, drive health, data transfer speed and working hours. A detailed graph allows you to monitor the drive temperature in real time , while sleep mode saves power when idle. With this intelligent monitoring, you will always have your drive under control - simply, clearly and effectively.

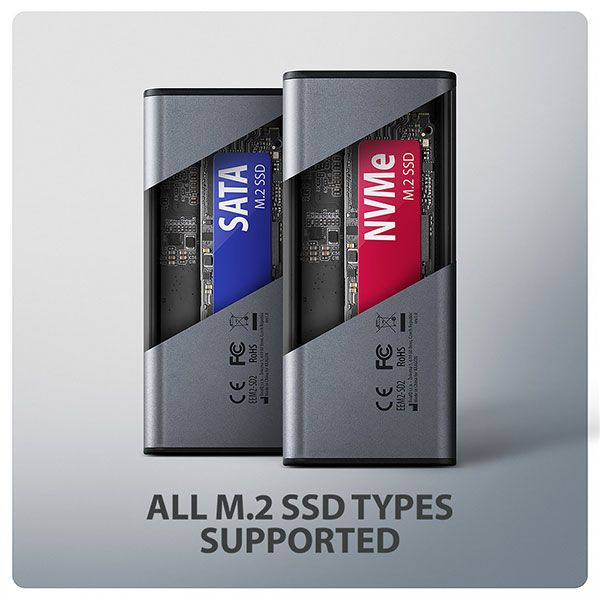

Thanks to the USB 3.2 Gen 2 interface, the transfer speed is up to 10 Gb/s . The external M.2 box also supports other modern functions such as UASP , TRIM and allows reading SMART information monitoring the disk status. A unique feature , thanks to the chipset used, is the ability to use both M.2 NVMe and SATA disks. You don't have to think about what type of M.2 disk you will insert into the box. The box can accommodate SSD cards in three different lengths - 42, 60 and 80 mm. M.2 cards can be single-sided or double-sided, and the box does not limit the capacity of the inserted SSD disk.

The screwless opening of the box makes it easy to install and remove the M.2 SSD. Replacing the drives is quick and easy, expanding the possibilities of using the box, e.g. for data migration, testing, etc. The outer metal casing is made in gray with an elegant surface that prevents unwanted fingerprints. The aluminum body of the box and the heat-conducting pad ensure ideal cooling of the inserted M.2 SSD. This extends its lifespan and prevents the disk speed from slowing down, so-called Thermal Throttling.

By inserting an M.2 SSD into this box, you can easily create a fast, compact and versatile external drive that can be used not only with computers and laptops, but also with mobile phones and tablets.

Input:
• USB 10Gbps (USB 3.2 Gen 2), USB-C female connector.
• Compatible with USB 5Gbps, USB 20Gbps, USB4 and Thunderbolt 3/4/5.

Device support:
• NVMe M.2 SSD drives,
• SATA M.2 SSD drives,
• designed for M key or B+M key format cards,
• NGFF 75-pin M key slot for M.2 drives.

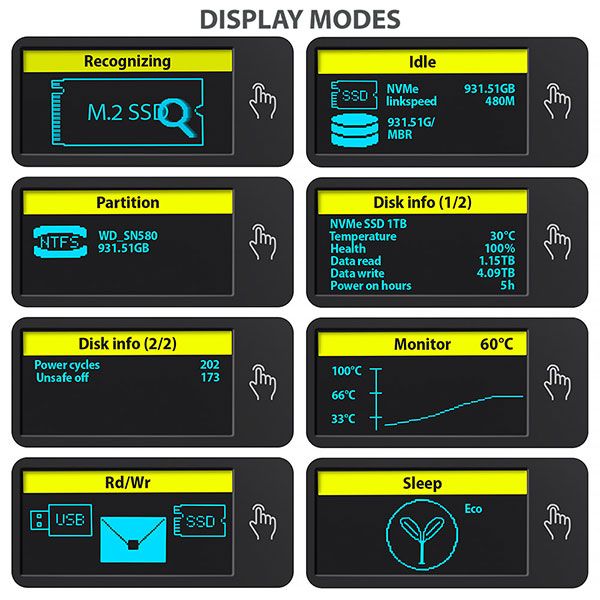

The LED display shows:
• Recognizing - disk recognition (displayed when the box is connected to the device)
• Partition - displays the file system, size and system name of the disk
• Idle - idleness (disk information - used interface and disk size, connected bus speed, disk partitioning standard)
• Disk info - displays disk information (disk manufacturing designation, real disk temperature, health, amount of written / read data, total disk runtime, number of disk removals without using safe removal)
• Monitor - disk temperature in real time using a graph
• Rd/Wr - data transfer (during data transfer, you can switch between sections)
• Sleep - disk sleep mode

Other features:
• Support for transfer rates of 10,000 / 5,000 / 480 Mbit/s.
• Support for M key or B+M key NVMe (PCI-Express) and SATA (AHCI) M.2 SSDs without maximum capacity limitations.
• Support for M.2 drives of dimensions – 2242, 2260, 2280 mm.
• Support for single-sided and double-sided M.2 SSDs.
• Complies with PCI Express Base Specification Revision 3.1a specification.
• Complies with NVM Express 1.3 specification.
• Complies with Serial ATA 3.2 specification (SATA/600), transfer rates up to 6 Gb/s (600 MB/s).
• Complies with USB Mass Storage Class specification. •
The total throughput / transfer rate of the adapter is determined by the USB interface used (theoretically up to 10 Gbit/s).
• The actual throughput / transfer speed of the adapter is around 1000 MB/s (1 GB/s) due to the limits of the USB 3.2 Gen 2 interface.
• BOT (Bulk-Only Transport) support.
• UASP (USB Attached SCSI) support for faster data transfer in Windows 8 and later.
• TRIM function support to limit the gradual degradation of SSD performance over time.
• SMART (Self-Monitoring, Analysis, and Reporting Technology) support for disk status monitoring.
• Support for booting from SSD in an external box.
• Possibility of connecting devices while running thanks to Hot Plug support.
• Full Plug and Play support.
• Power saving mode support.
• USB bus power supply of up to 900mA from one USB port is sufficient in all cases.
• Subtle blue LED indicating connection to the computer's USB port and data transfer (continuous light).
• Durable aluminum body and heat-conducting pad help to better cool the M.2 SSD drive.
• Higher surface temperature of the box is not a defect - thanks to the aluminum body, the heat generated by the disk operation is better dissipated and transferred to the environment.
• Connection via USB 3.2 Gen 2 type C female connector.
• USB type C male / USB type C male cable, 25 cm long and USB type C female / USB type A male adapter are included in the package.

Other details:
• Box dimensions 96 x 42 x 12 mm.
• Box weight 46 g (without cable, adapter and M.2 disk).

Supported operating systems:
• Windows 7 / 8.1 / 10 / 11 and later, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
• Compatibility depends on the updated operating system and support from the device manufacturer.
• Note: When using with Windows 7, it is necessary to verify the support of this OS and the availability of the driver with the M.2 SSD manufacturer.

The package includes:
• USB-C 10Gbps external box for M.2 SSD,
• USB-C - USB-C cable 25 cm long with USB-C - USB-A adapter,
• 1 pc of thermal pads,
• multilingual instructions CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA,
• packed in a cardboard box with a hole for hanging.
