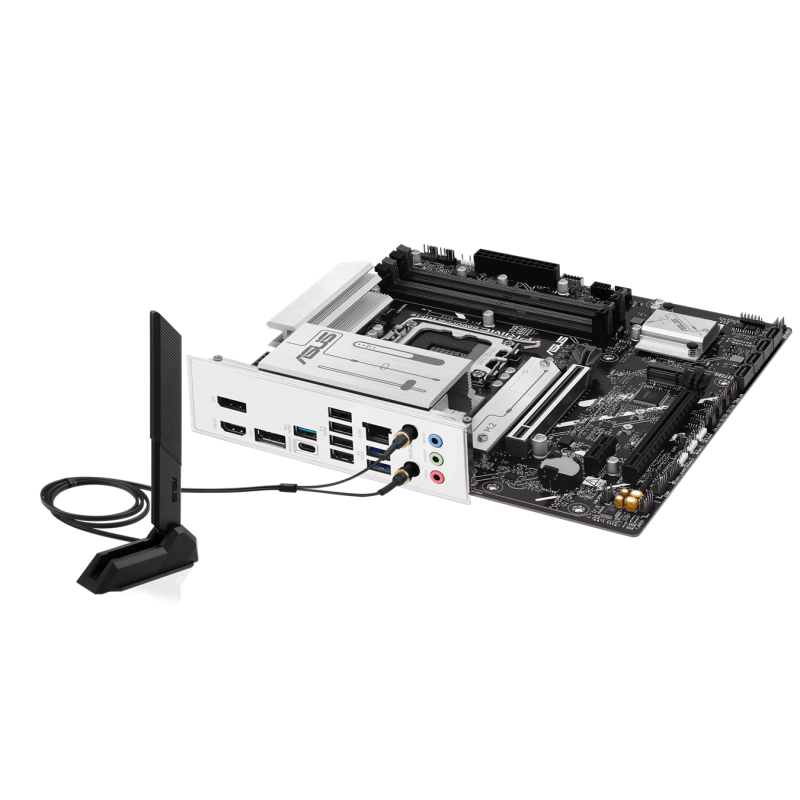

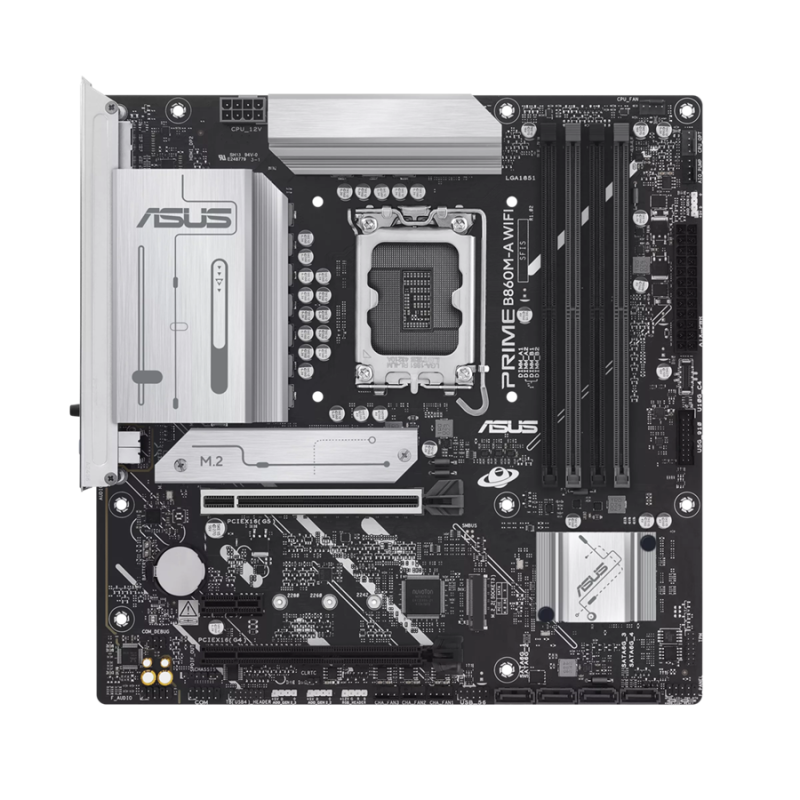

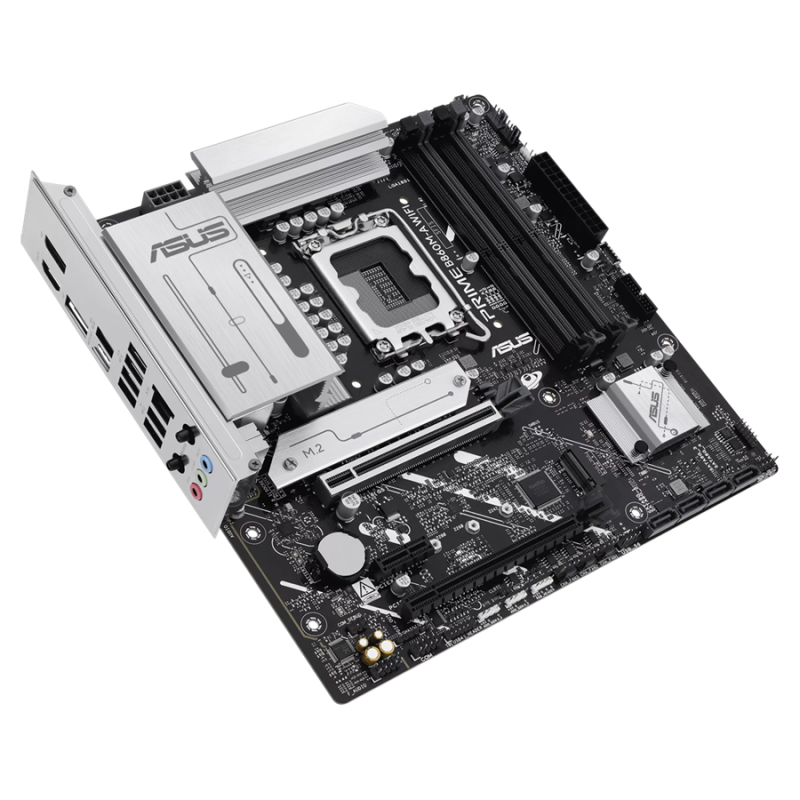

ASUS PRIME B860M-A WIFI

Марка: ASUS
Код:

4711387806289 / 90MB1JY0-M0EAY0

Изпрати на приятел

Оцени продукта

Сравни

388.91 лв. €198.85

Manufacturer:

ASUS
Wireless:

Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax);Supports 2.4/5/6GHz frequency band;Bluetooth® v5.3
OS:

Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)
Memory type:

4 x DIMM slots, max. 256GB, DDR5;Supports up to 8666+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM);Dual channel memory architecture;DIMM Fit;Supports Intel® Extreme Memory Profile (XMP) memory module;ASUS Enhanced Memory Profile III(...
Graphics:

2 x DisplayPort;1 x HDMI™ port;1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB la...
LAN:

1 x Realtek 2.5Gb Ethernet, ASUS LANGuard
Expansion Slots:

Intel® Core™ Ultra Processors(series 2);1 x PCIe 5.0 x16 slot;Intel® B860 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode);1 x PCIe 4.0 x1 slot
I/O:

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode);1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A );2 x DisplayPort;1 x HDMI™ port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks
Form Factor:

micro-ATX Form Factor, 24.4 cm x 24.4 cm
CPU's supported:

Support Intel® Core™ Ultra Processors (Series 2) , LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset:

Intel® B860 Chipset
Storage:

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Ultra Processors (Series 2);M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);Intel®B860 Chipset;M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes);...
Connectors:

Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;3 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connector;Storage Related;2 x M.2 slots (Key M)...
BIOS:

256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Features:

ASUS 5X PROTECTION III;- DIGI+ VRM (- Digital power design with DrMOS);- ESD Guards;- LANGuard;- Overvoltage protection;- SafeSlot;- Stainless-steel back I/O;ASUS Q-Design;- Q-Antenna;- Q-Dashboard;- Q-DIMM;- Q-LED Core;- Q-Slot;ASUS Thermal Solution;-...
USB:

Rear USB (Total 8 ports);1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode);1 x USB 10Gbps port (1 x Type-A );2 x USB 5Gbps ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);Front USB (Total 5 ports);1 x USB 10Gbps connector (supports USB Type-C® )...
