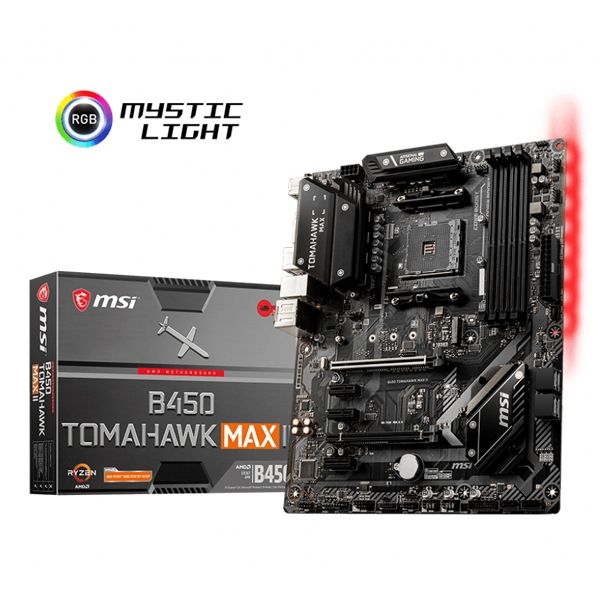

MB MSI B450 TOMAHAWK MAX II, HDMI/DVI, 4xD4

MSI B450 TOMAHAWK MAX II /AM4

• Graphics: 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz 12; 1 x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160@60Hz 123; Maximum shared memory of 16GB

• CPU`s supported: Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

• Chipset: AMD® B450 Chipset

• Expansion Slots: 1 x PCIe 3.0 x16 slot (PCI_E1); 1st, 2nd and 3rd Gen AMD Ryzen™ processors support x16 speed; Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors support x8 speed; 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1; 3 x PCIe 2.0 x1 slots1

• Storage: AMD® CPU: 2 x SATA 6Gb/s ports1; 1 x M.2 slot (Key M)1; Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s; Supports 2242/ 2260 /2280/ 22110 storage devices; AMD® B450: 4 x SATA 6Gb/s ports

• Memory type: 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.; Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC); For AMD Ryzen Gen3 (R5/R7/R9); Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE); For AMD Other CPU; Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE); Dual channel memory architecture; Supports non-ECC UDIMM memory; Supports ECC UDIMM memory (non-ECC mode)

• I/O: Flash BIOS Button; PS/2 Combo Port; USB 3.2 Gen 1 5Gbps Type-A ports; LAN Port; HD Audio Connectors; USB 2.0 Port; DVI-D Port; HDMI Port; USB 3.2 Gen 2 10Gbps Type-A+C ports

• Connectors: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 6 x SATA 6Gb/s connectors; 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports); 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports); 1 x 4-pin CPU fan connector; 1 x 4-pin water-pump-fan connector; 4 x 4-pin system fan connectors; 1 x TPM module connector; 1 x Front panel audio connector; 2 x System panel connectors; 1 x Chassis Intrusion connector; 1 x Serial Port connector; 1 x Clear CMOS jumper; 2 x 5050 RGB LED strip 12V connectors

• Audio: Realtek® ALC892/ALC897 Codec; 7.1-Channel High Definition Audio

• LAN: 1 x Realtek® 8111H Gigabit LAN controller

• Form Factor: 12 in. x 9.6 in. (30.5 cm x 24.4 cm); ATX Form Factor

• OS: Support for Windows® 10 64-bit; Support for Windows® 7 64-bit

• Warranty: 36 Months
