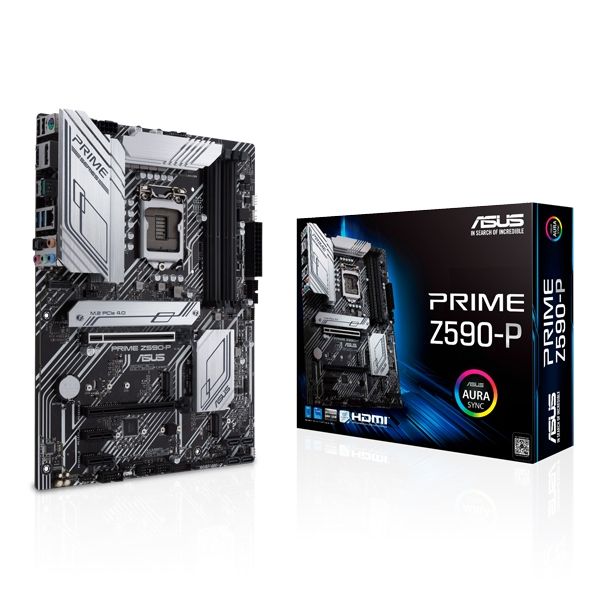

ASUS PRIME Z590-P
• Graphics: 1 x DisplayPort 1.4**; 1 x HDMITM 1.4 / 2.0***
• CPU`s supported: Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*; Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• Chipset: Intel® Z590 Chipset
• Expansion Slots: Intel® 11th & 10th Gen Processors*; 1 x PCIe 4.0/3.0 x16 slot; - Intel® 11th Gen processors support PCIe 4.0 x16 or x8/x8 or x8/x4/x4 modes; - Intel® 10th Gen processors support PCIe 3.0 x16 or x8/x8 or x8/x4/x4 modes; Intel® Z590 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode); 2 x PCIe 3.0 x1 slots
• Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® 11th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280/22110; - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs; Intel® Z590 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*; M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes); 4 x SATA 6Gb/s ports; Raid function for PCIe mode SSD in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology.
• Memory type: 4 x DIMM, Max. 128GB, DDR4 5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II
• I/O: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 1 x USB 3.2 Gen 2 port (1 x Type-A); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI™ port; 1 x V-M.2 slot (Key E); 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port; 1 x PS/2 Keyboard/Mouse combo port
• Connectors: 1 x 4-pin CPU Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 3 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®); 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 2 x AURA Addressable Gen 2 headers; 2 x AURA RGB headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x SPI TPM header (14-1pin); 1 x 20-5pin System Panel header; 1 x Thunderbolt™ header
• Audio: "Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback"; Audio Features; - Audio Shielding; - Rear optical S/PDIF out port; - Premium Japanese audio capacitors; - Dedicated audio PCB layers
• LAN: 1 x Realtek 2.5Gb Ethernet
• BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• Form Factor: ATX Form Factor; 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
• OS: Windows® 10 64-bit
• Other: "V-M.2 slot only (Key E, CNVi & PCIe)*
• Warranty: 36 Months
