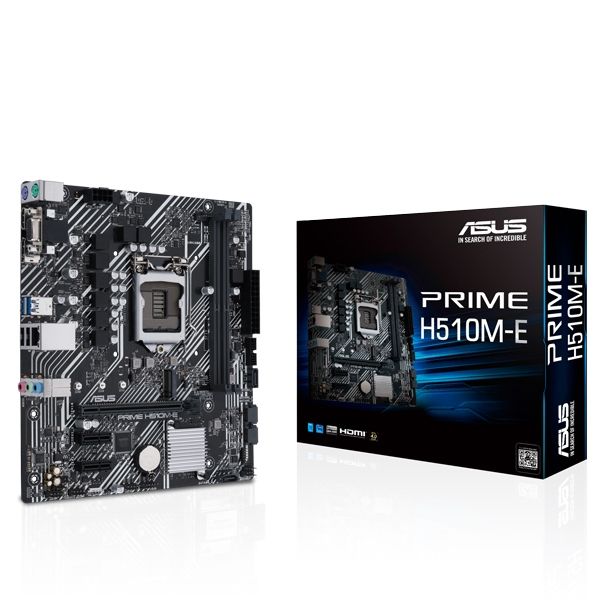

MB ASUS PRIME H510M-E, DP/HDMI/VGA, 2xD4

ASUS PRIME H510M-E /LGA1200

• Graphics: 1 x D-Sub

• CPU`s supported: Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Chipset: Intel® H510 Chipset

• Expansion Slots: Intel® 11th & 10th Gen Processors; 1 x PCIe 4.0/3.0 x16 slot; - Intel® 11th Gen processors support PCIe 4.0 x16; - Intel® 10th Gen processors support PCIe 3.0 x16; Intel® H510 Chipset; 2 x PCIe 3.0 x1 slots

• Storage: Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports; Intel® H510 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); 4 x SATA 6Gb/s ports

• Memory type: DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP)

• I/O: 2 x USB 3.2 Gen 1 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x D-Sub port; 1 x HDMI™ port; 1 x Intel® I219-V 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard (purple) port; 1 x PS/2 Mouse (green) port

• Connectors: 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 1 x RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header

• Audio: Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback"; Audio Features; - Audio Shielding; - Premium Japanese audio capacitors; - Dedicated audio PCB layers

• LAN: 1 x Intel® I219-LM 1Gb Ethernet; ASUS LANGuard

• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

• Form Factor: microATX; 22.6cm x 21.1cm

• OS: Windows 10 64bit

• Warranty: 36 Months
