MB ASUS PRIME H570M-PLUS, DP/HDMI/VGA, 4xD4

296.42 лв.
Няма наличност
Добави в желани

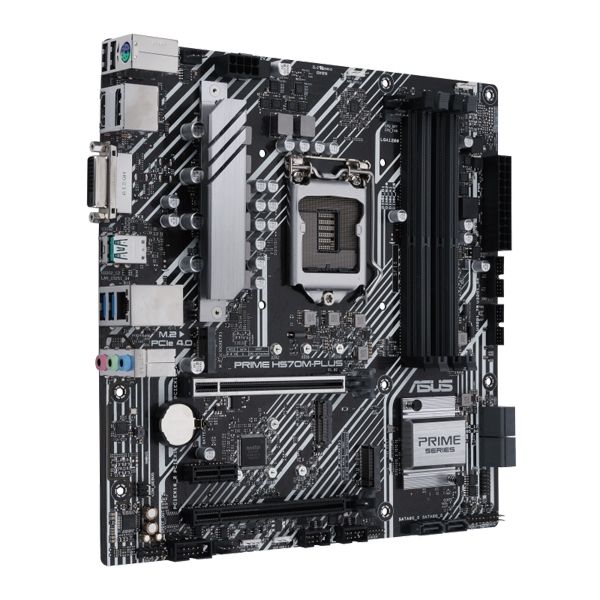

ASUS PRIME H570M-PLUS

• Graphics: 1 x DisplayPort 1.4; 1 x DVI-D; 1 x HDMI™ 1.4 / 2.0***

• CPU`s supported: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors; Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.; Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**; * Refer to www.asus.com for CPU support list.; ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

• Chipset: Intel® H570 Chipset

• Expansion Slots: Intel® 11th & 10th Gen Processors*; 1 x PCIe 4.0/3.0 x16 slot; - Intel® 11th Gen processors support PCIe 4.0 x16 mode; - Intel®10th Gen processors support PCIe 3.0 x16 mode; Intel® H570 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode); 1 x PCIe 3.0 x1 slot; Intel® 11th & 10th Gen Processors*; 1 x PCIe 4.0/3.0 x16 slot; - Intel® 11th Gen processors support PCIe 4.0 x16 mode; - Intel®10th Gen processors support PCIe 3.0 x16 mode; Intel® H570 Chipset; 1 x PCIe 3.0 x16 slot (supports x4 mode); 1 x PCIe 3.0 x1 slot

• Storage: Intel®11th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280; - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs; Intel® H570 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); 6 x SATA 6Gb/s ports; * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_2 port cannot be used.; Intel®11th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280; - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® H570 Chipset; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); 6 x SATA 6Gb/s ports; Raid function in Intel® Rapid Storage Technology is available with either 1. Intel® SSDs installed in both CPU-attached and PCH-attached slots, or 2. any other 3rd party SSDs installed in PCH-attached slots. To enable In

• Memory type: DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem; * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.; * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.; * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.; 4 x DIMM, Max. 128GB, 4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem

• I/O: 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x DVI-D port; 1 x HDMITM port; 1 x Intel® I219V 1Gb Ethernet; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port; 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®); 2 x USB 3.2 Gen 1 ports (2 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x DVI-D port; 1 x HDMI port; 1 x Intel® I219V 1Gb Ethernet; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port

• Connectors: 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 2 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 2 x M.2 slots (Key M); 6 x SATA 6Gb/s ports; 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 2 x AURA Addressable Gen 2 headers; 2 x AURA RGB headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x M.2 slot (Key E); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt™ header

• Audio: Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features: - Audio Shielding; - Premium Japanese audio capacitors; - Dedicated audio PCB layers; * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.; Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features: - Audio Shielding; - Premium Japanese audio capacitors; - Dedicated audio PCB layers

• LAN: 1 x Intel® I219-V 1Gb Ethernet;ASUS LANGuard

• BIOS: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

• Form Factor: microATX; 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

• OS: Windows® 10 64-bit

• Other: M.2 slot only (Key E, CNVi & PCIe)

• Warranty: 36 Months
