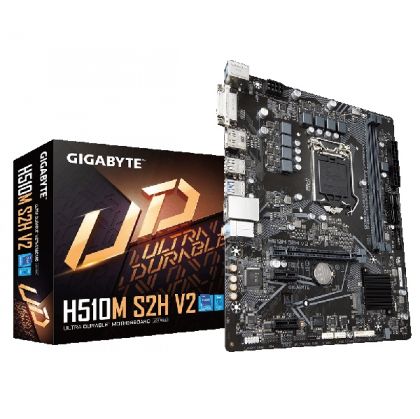

MB GB H510M S2H V2, DP/HDMI/DVI, 2xD4, M.2

Марка: GIGABYTE
Код:

GA-MB-H510M-S2H-V2 / Re

154.48 лв.

MB GB H510M S2H V2, DP/HDMI/DVI, 2xD4, M.2

Intel® H510M Ultra Durable Motherboard with 6+2 Phases Digital VRM, PCIe 4.0* Design, Realtek 8118 Gaming LAN, 3 Display Interfaces Support , Anti-Sulfur Resistor, Smart Fan 6

Supports 11th and 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
3 Display Interfaces Support
High Quality Audio Capacitors and Audio Noise
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

CPU	LGA1200 package:
	11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
	10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
	* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
	L3 cache varies with CPU
Chipset	Intel® H510 Express Chipset
Memory	11th Generation Intel® Core™ i9/i7/i5 processors:
	Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
	10th Generation Intel® Core™ i9/i7 processors:
	Support for DDR4 2933/2666/2400/2133 MHz memory modules
	10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
	Support for DDR4 2666/2400/2133 MHz memory modules
	2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
	Dual channel memory architecture
	Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support:
	1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
	* The DVI-D port does not support D-Sub connection by adapter.
	1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
	* Support for HDMI 1.4 version and HDCP 2.3.
	1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
	* Support for DisplayPort 1.2 version and HDCP 2.3
	Support for up to 2 displays at the same time
	(Graphics specifications may vary depending on CPU support.)
Audio	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
	* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN	Realtek® GbE LAN chip (1 Gbit/100 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16
	(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)*
	* Supported by 11th Generation processors only.
	2 x PCI Express x1 slots
	(The PCI Express x1 slots conform to PCI Express 3.0 standard.)
Storage Interface	Chipset:
	1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
	* The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only.
	4 x SATA 6Gb/s connectors
	* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB	Chipset:
	4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
	Chipset+USB 2.0 Hub:
	8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)
Internal I/O Connectors	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	4 x SATA 6Gb/s connectors
	1 x CPU fan header
	2 x system fan headers
	1 x RGB LED strip header
	1 x front panel header
	1 x front panel audio header
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x serial port header
	1 x Clear CMOS jumper
	*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
Back Panel Connectors	1 x PS/2 keyboard port
	1 x PS/2 mouse port
	1 x DVI-D port
	1 x DisplayPorts
	1 x HDMI port
	2 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	1 x RJ-45 port
	3 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection
	Temperature detection
	Fan speed detection
	Overheating warning
	Fan fail warning
	Fan speed control
	* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	1 x 256 Mbit flash
	Use of licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center
	* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
	@BIOS
	Ambient LED
	EasyTune
	Fast Boot
	Game Boost
	ON/OFF Charge
	Smart Backup
	System Information Viewer
	Support for Q-Flash
	Support for Xpress Install
Bundled Software	Norton® Internet Security (OEM version)
Bundled Software	Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System	Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 21.0cm
