MB ASUS PRIME H410M-K R2.0, HDMI/DVI, 2xD4

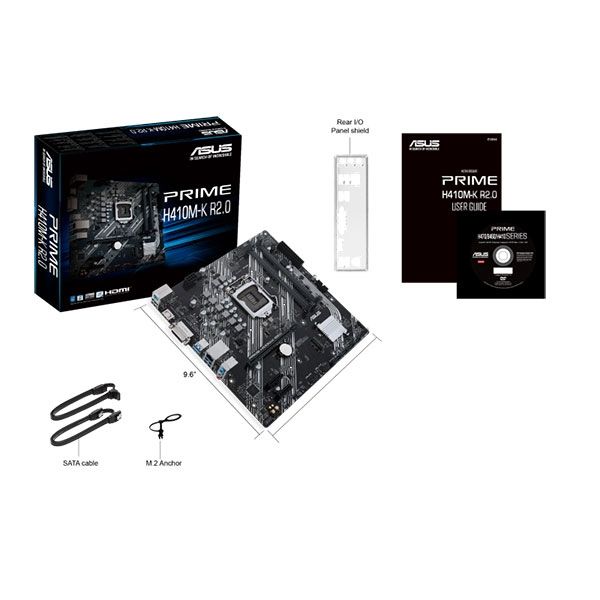

ASUS PRIME H410M-K R2.0

• Graphics: 1 x DVI-D; 1 x HDMI 1.4

• CPU`s supported: Intel® Socket LGA1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*; Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• Chipset: Intel® H470 Chipset

• Expansion Slots: 1 x PCIe 3.0 x16 (x16 mode); Intel® 10th Gen Processors; 1 x PCIe 3.0 x16 slot (supports x16 mode); Intel® H470 Chipset; 2 x PCIe 3.0 x1 slots

• Storage: Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports; Intel® H470 Chipset; M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes); 4 x SATA 6Gb/s ports; Intel® Rapid Storage Technology supports RAID 0,1,5,10; Intel® Optane™ Memory Ready

• Memory type: 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem

• I/O: 4 x USB 3.2 Gen 1 ports (4 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DVI-D port; 1 x HDMITM port; 1 x Intel® I219-V 1Gb Ethernet port; 3 x Audio jacks; 1 x PS/2 Keyboard/Mouse combo port

• Connectors: 1 x 4-pin CPU Fan header; 1 x 4-pin Chassis Fan header; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x M.2 slot (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 1 x Clear CMOS header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x SPI TPM header (14-1pin); 1 x 20-3 pin System Panel header with Chassis intrude function

• Audio: Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; Audio Features; - Audio Shielding; - Premium Japanese audio capacitors; - Dedicated audio PCB layer

• LAN: 1 x Intel® 1Gb Ethernet; ASUS LANGuard

• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

• Form Factor: microATX; 24.4cm x 24.4cm

• Warranty: 36 Months
