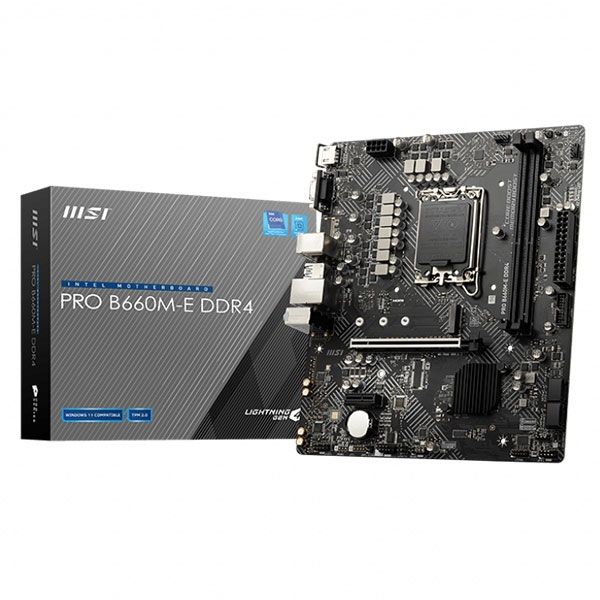

MB MSI PRO B660M-E DDR4, HDMI/VGA, 2xD4, 1xM.2

MSI PRO B660M-E DDR4 /LGA1700

• Graphics: 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2; 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2

• CPU`s supported: Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors 1; Processor socket LGA1700

• Chipset: Intel® B660 Chipset

• Expansion Slots: 1x PCIe x16 slot (From CPU); Supports up to PCIe 4.0 x16; 1x PCIe x1 slot (From B660 chipset); Supports PCIe 3.0 x1

• Storage: 4x SATA 6Gb/s ports (From B660chipset) 1; 1x M.2 slot (Key M, from B660 chipset) 1; Supports up to PCIe 3.0 x4; Supports up to SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; Support Intel® Optane™ Memory; Supports Intel® Smart Response Technology for Intel Core™ processors

• Memory type: 2x DDR4 memory slots, support up to 64GB 1; Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR); Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz; 1DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP)

• I/O: HDMI; VGA; Keyboard / Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0

• Connectors: 1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector; 1x 4-pin CPU fan connector; 1x 4-pin system fan connector; 1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; 1x Clear CMOS jumper; 4x EZ Debug LED

• Audio: Realtek® ALC892/ ALC897 Codec; 7.1-Channel High Definition Audio

• LAN: 1x Intel® I219V 1Gbps LAN controller

• Form Factor: M-ATX Form Factor; 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)

• Warranty: 36 Months
