Начало Компютърни компоненти Дънни платки MB ASUS TUF GAMING B660M-PLUS D4, DP/HDMI,4xD4

MB ASUS TUF GAMING B660M-PLUS D4, DP/HDMI,4xD4

Гаранция 36 МЕСЕЦА
  • Марка:
  • Код:
    90MB1940-M0EAY0 / Re
344.85 лв.
Няма наличност
Добави в желани

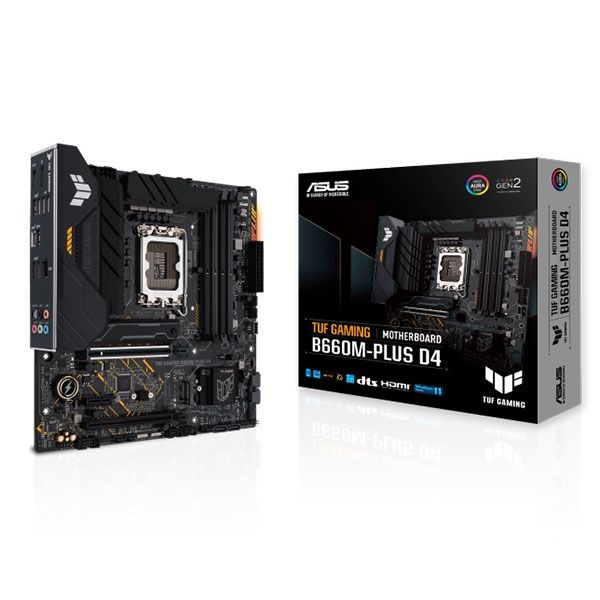

ASUS TUF GAMING B660M-PLUS D4

Graphics: 1 x DisplayPort**; 1 x HDMI® port***

CPU`s supported: Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors; Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*

Expansion Slots: Intel® 12th Gen Processors; 1 x PCIe 5.0 x16 slot; Intel® B660 Chipset*; 1 x PCIe 3.0 x16 slot (supports x4 mode); 1 x PCIe 4.0 x1 slot

Storage: Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*; Intel® 12th Gen Processors; M.2_1 slot (Key M), type 2242/2260/2280; - Intel® 12th Gen processors support PCIe 4.0 x4 mode.; Intel® B660 Chipset**; M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports

Memory type: 4 x DIMM, Max. 128GB, DDR4 5333(OC) /5066(OC)/5000(OC)/4800(OC)/4600 (OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC) /3733(OC)/3600(OC)/3466(OC)/3400 (OC)/3333(OC)/ 3200/3000/2933/2800 /2666/2400/2133 Non-ECC, Un-buffered Memory*; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem II

I/O: 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®); 4 x USB 3.2 Gen 2 ports (4 x Type-A); 1 x USB 3.2 Gen 1 port (1 x Type-A); 2 x USB 2.0 ports (2 x Type-A); 1 x DisplayPort; 1 x HDMI® port; 1 x Realtek 2.5Gb Ethernet port; 5 x Audio jacks; 1 x Optical S/PDIF out port

Connectors: 1 x 4-pin CPU Fan header; 1 x 4-pin CPU OPT Fan header; 1 x 4-pin AIO Pump header; 3 x 4-pin Chassis Fan headers; 1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector; 1 x 4-pin +12V Power connector; 2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports; 1 x USB 3.2 Gen 1 connector (supports USB Type-C®); 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports; 2 x USB 2.0 headers support additional 4 USB 2.0 ports; 3 x Addressable Gen 2 headers; 1 x AURA RGB header; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x 20-3 pin System Panel header with Chassis intrude function; 1 x Thunderbolt™ heade

Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC; - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking; - Supports up to 24-Bit/192 kHz playback; - Audio Features; - Audio Shielding; - Power pre-regulator reduces power input noise to ensure consistent performance; - Rear optical S/PDIF out port; - Premium audio capacitors; - Dedicated audio PCB layers

LAN: TUF LANGuard; 1 x Realtek 2.5Gb Ethernet ; TUF LANGuard

BIOS: 128 Mb Flash ROM, UEFI AMI BIOS

Form Factor: microATX; 24.4cm x 24.4cm

Warranty: 36 Months
