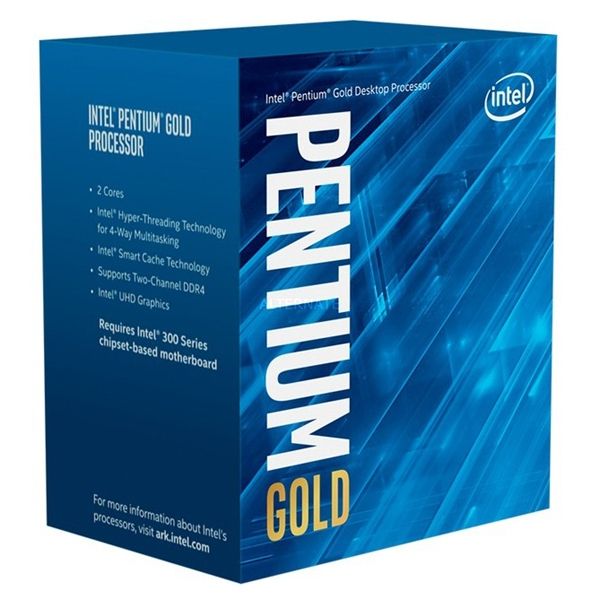

CPU Pentium G6400, 2C/4T, 4.0/4M/s1200, Box

Марка: INTEL
Код:

BX80701G6400SRH3Y / Re

Изпрати на приятел

Оцени продукта

Сравни

149.04 лв.

CPU Pentium G6400, 2C/4T, 4.0/4M/s1200, Box

General information

Type

CPU / Microprocessor

Market segment

Desktop

Family

Intel Pentium Dual-Core

Model number

G6400

CPU part numbers

CM8070104291810 is an OEM/tray microprocessor
BX80701G6400 is a boxed processor (English version)
BXC80701G6400 is a boxed processor (Chinese version)

Frequency

4000 MHz

Low power frequency

800 MHz

Bus speed

8 GT/s DMI

Clock multiplier

Package

1200-land Flip-Chip Land Grid Array

Socket

Socket 1200

Size

1.48" x 1.48" / 3.75cm x 3.75cm

Introduction date

April 30, 2020

S-spec numbers

Part number	Production processors
	SRH3Y
BX80701G6400	+
BXC80701G6400	+
CM8070104291810	+

Architecture / Microarchitecture

Microarchitecture

Comet Lake

Processor core

Comet Lake-S

Core stepping

G1 (SRH3Y)

Manufacturing process

0.014 micron

Data width

64 bit

The number of CPU cores

The number of threads

Floating Point Unit

Integrated

Level 1 cache size

2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches

Level 2 cache size

2 x 256 KB 4-way set associative caches

Level 3 cache size

4 MB shared cache

Physical memory

128 GB

Multiprocessing

Uniprocessor

Extensions and Technologies

MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
AES / Advanced Encryption Standard instructions
EM64T / Extended Memory 64 technology / Intel 64
HT / Hyper-Threading technology
VT-x / Virtualization technology
VT-d / Virtualization for directed I/O

Security Features

NX / XD / Execute disable bit
SGX / Software Guard Extensions

Low power features

Core C1/C1E, C3, C6, C7, C8, C9 and C10 states
Package C3, C6, C7, C8, C9 and C10 states
Enhanced SpeedStep technology

Integrated peripherals / components

Display controller

3 displays
DVI / DisplayPort 1.2 / Embedded DisplayPort 1.4 / HDMI 1.4

Integrated graphics

GPU Type: Intel UHD 610
Graphics tier: GT1
Microarchitecture: Gen 9 LP
Base frequency (MHz): 350
Maximum frequency (MHz): 1050

Memory controller

The number of controllers: 1
Memory channels: 2
Channel width (bits): 64
Supported memory: DDR4-2666
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 42.7

Other peripherals

Direct Media Interface 3.0 (4 lanes)
PCI Express 3.0 interface (16 lanes)

Electrical / Thermal parameters

Minimum/Maximum operating temperature

0°C (case) - 68°C (case)
100°C (junction)

Thermal Design Power

58 Watt

Notes on Intel Pentium G6400

Intel Optane memory is supported
The processor has the following security, data protection and/or software features: Intel Boot Guard, Identity Protection technology, OS Guard and Secure Key.
The CPU is compatible with DirectX 12, OpenGL 4.5, OpenCL 1.2, OpenCL 2.0 and OpenCL 2.1 APIs.
The graphics unit has the following software features enabled: Intel Quick Sync Video, Clear Video technology, Clear Video HD technology and InTru 3D technology
