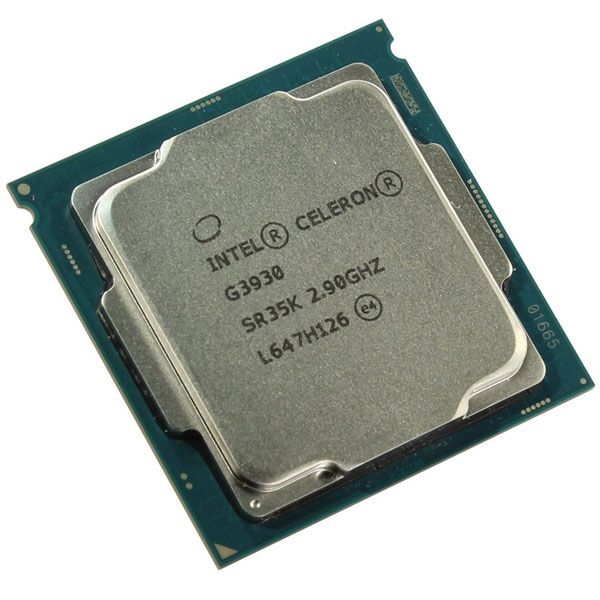

CPU G3930, 2.9/2M/s1151, Tray

Марка: INTEL
Код:

CM8067703015717

Изпрати на приятел

Оцени продукта

Сравни

32.86 лв. €16.80

General information

Type

CPU / Microprocessor

Market segment

Desktop

Family

Intel Celeron Dual-Core

Model number

G3930

CPU part numbers

CM8067703015717 is an OEM/tray microprocessor

Frequency

2900 MHz

Bus speed

8 GT/s DMI

Clock multiplier

Package

1151-land Flip-Chip Land Grid Array

Socket

Socket 1151 / H4 / LGA1151

Size

1.48" x 1.48" / 3.75cm x 3.75cm

Introduction date

January 3, 2017

S-spec numbers

Part number	ES/QS processors	Production processors
	QL3H	SR35K
BX80677G3930		+
BXC80677G3930		+
CM8067703015717		+
Unknown	+

Architecture / Microarchitecture

Microarchitecture

Kaby Lake

Processor core

Kaby Lake-S

Core stepping

S0 (SR35K)

Manufacturing process

0.014 micron

Data width

64 bit

The number of CPU cores

The number of threads

Floating Point Unit

Integrated

Level 1 cache size

2 x 32 KB 8-way set associative instruction caches
2 x 32 KB 8-way set associative data caches

Level 2 cache size

2 x 256 KB 4-way set associative caches

Level 3 cache size

2 MB 8-way set associative shared cache

Physical memory

64 GB

Multiprocessing

Uniprocessor

Extensions and Technologies

MMX instructions
SSE / Streaming SIMD Extensions
SSE2 / Streaming SIMD Extensions 2
SSE3 / Streaming SIMD Extensions 3
SSSE3 / Supplemental Streaming SIMD Extensions 3
SSE4 / SSE4.1 + SSE4.2 / Streaming SIMD Extensions 4
AES / Advanced Encryption Standard instructions
EM64T / Extended Memory 64 technology / Intel 64
NX / XD / Execute disable bit
VT-x / Virtualization technology
VT-d / Virtualization for directed I/O
MPX / Memory Protection Extensions
SGX / Software Guard Extensions
TSX / Transactional Synchronization Extensions

Low power features

Core C1/C1E, C3, C6, C7 and C8 states
Package C2, C3, C6, C7 and C8 states
Enhanced SpeedStep technology

Integrated peripherals / components

Display controller

3 displays
DisplayPort 1.2 / Embedded DisplayPort 1.4 / HDMI 1.4

Integrated graphics

GPU Type: Intel HD 610
Microarchitecture: Gen 9 LP
Base frequency (MHz): 350
Maximum frequency (MHz): 1050

Memory controller

The number of controllers: 1
Memory channels: 2
Supported memory: DDR3L-1333, DDR3L-1600, DDR4-2133
DIMMs per channel: 2
Maximum memory bandwidth (GB/s): 34.1
ECC supported: Yes

Other peripherals

Direct Media Interface 3.0 (4 lanes)
PCI Express 3.0 interface (16 lanes)

Electrical / Thermal parameters

Maximum operating temperature

100°C

Thermal Design Power

51 Watt

Notes on Intel Celeron G3930

The processor has the following security, data protection and/or software features: Intel Secure Key, Identity Protection technology, OS Guard and Boot Guard.
The CPU is compatible with DirectX 12 and OpenGL 4.4 APIs.
The graphics unit has the following software features enabled: Intel Quick Sync Video, Clear Video technology, Clear Video HD technology and InTru 3D technology.
