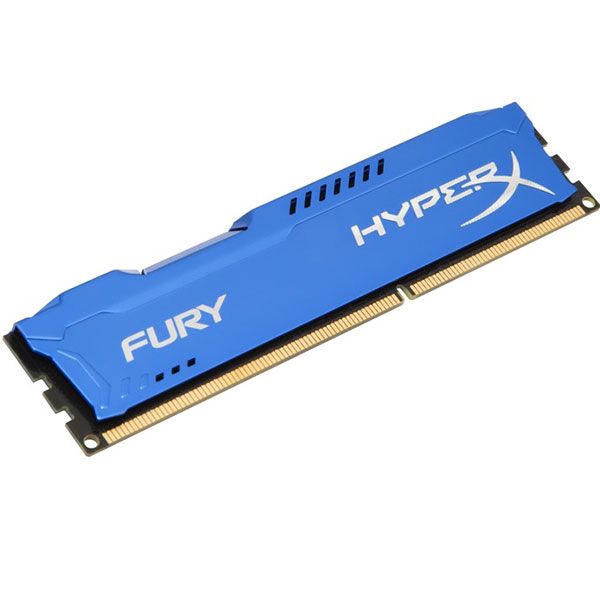

RAM DDR3 8GB 1600 HX316C10F/8

HX316C10F/8
8GB 1G x 64-Bit DDR3-1600
CL10 240-Pin DIMM

HyperX HX316C10F/8 is a 1G x 64-bit (8GB) DDR3-1600 CL10 SDRAM (Synchronous DRAM) 2Rx8 memory module, based on sixteen 512M x 8-bit DDR3 FBGA components. This module has been tested to run at DDR3-1600 at a low latency timing of 10-10-10 at 1.5V. Additional timing parameters are shown in the PnP Timing Parameters section below. The JEDEC standard electrical and mechanical specifications are as follows:

PnP JEDEC TIMING PARAMETERS:
• DDR3-1600 CL10-10-10 @1.5V
• DDR3-1333 CL9-9-9 @1.5V
• DDR3-1066 CL7-7-7 @1.5V
