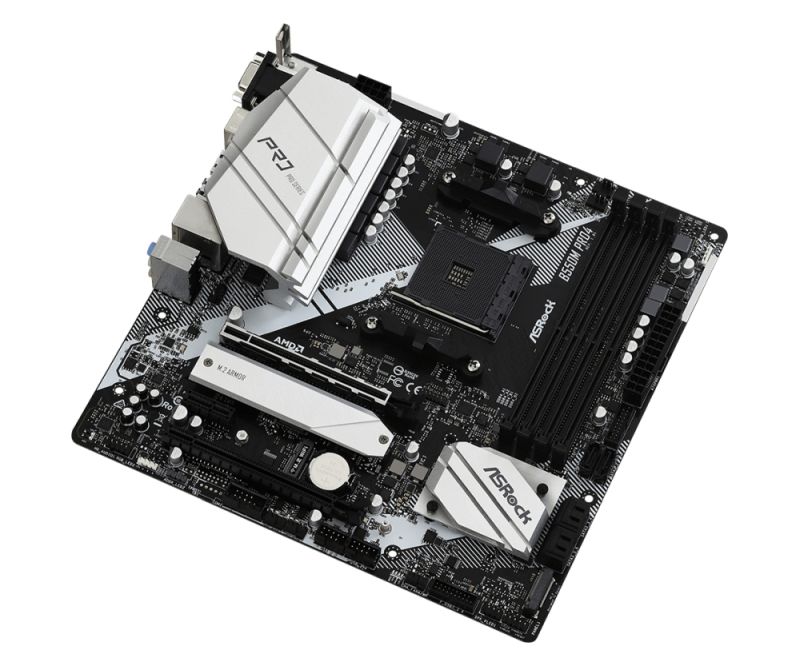

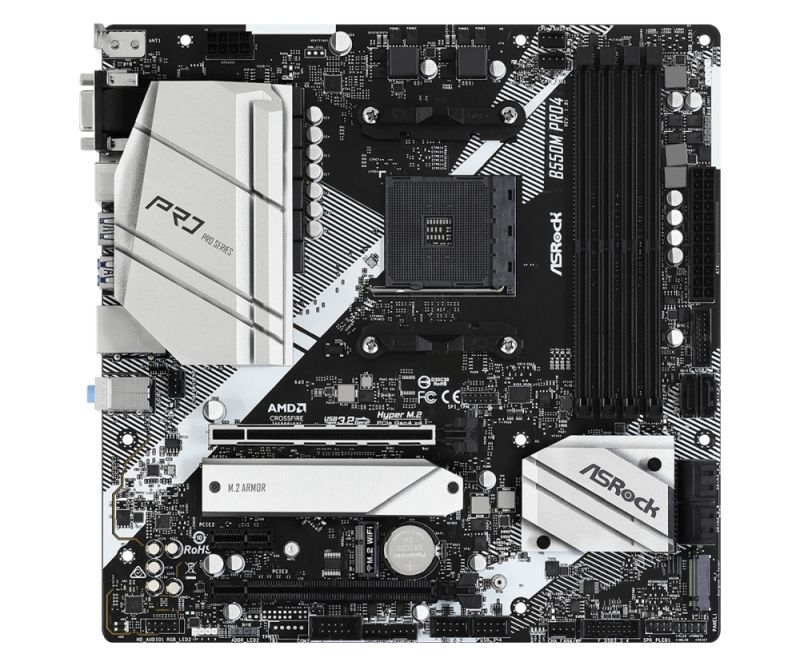

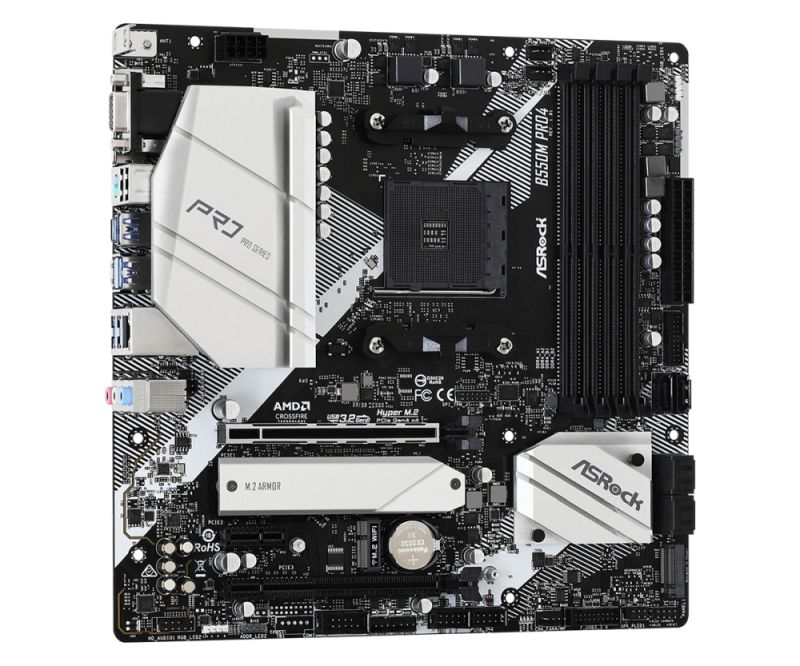

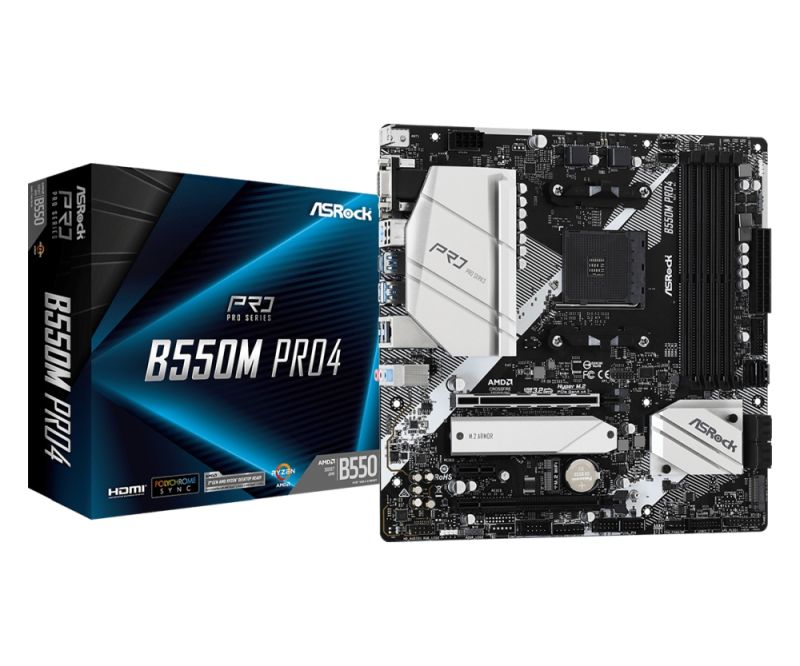

Дънна платка Asrock B550M Pro 4

Марка: ASROCK
Код:

90-MXBDK0-A0UAYZ

Изпрати на приятел

Оцени продукта

Сравни

208.01 лв.

Гаранция:

36
Серия:

PRO4
Софтуер:

ASRock Motherboard Utility (A-Tuning), ASRock XFast LAN.
Процесор:

AMD AM4 Ryzen
Чипсет:

AMD B550
Интерфейс:

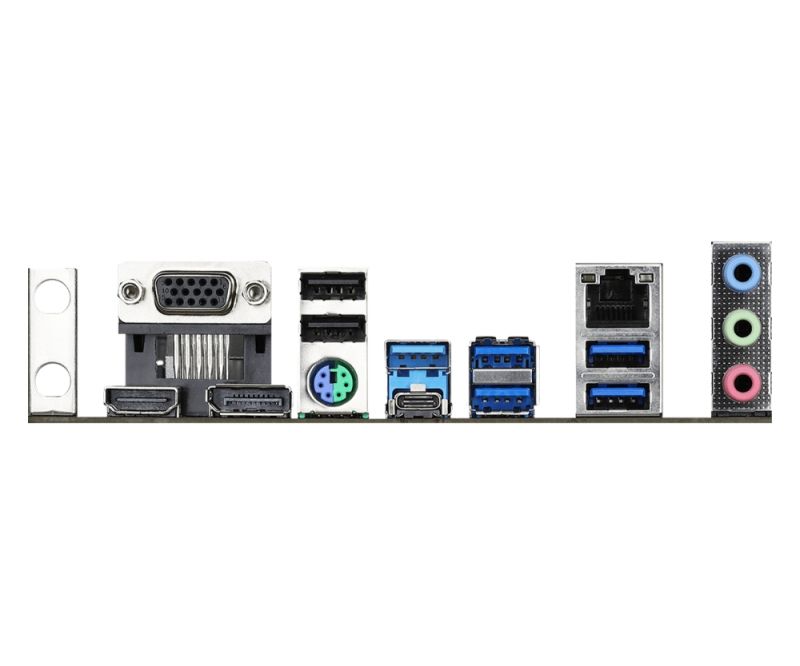

Antenna Bracket, 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x HDMI Port, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-A Port, 1 x USB 3.2 Gen2 Type-C Port, 4 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port with LED.
Форм-фактор:

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm.
Операционна система:

Microsoft Windows 10 64-bit
Безжична мрежа_TEXT:

-
Слотове:

2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode), 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode), 1 x PCI Express 3.0 x1 Slot, Supports AMD Quad CrossFireX and CrossFireX, 1 x M.2 Socket (Key E).
Аудио:

7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec); Premium Blu-ray Audio support; Supports Surge Protection; PCB Isolate Shielding; Individual PCB Layers for R/L Audio Channel; Nahimic Audio.
Конектори:

1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector.
M.2 слот:

1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s), 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s), 6 x SATA3 6.0 Gb/s Connec...
Специални функции:

ASRock USB 3.2 Gen2, ASRock Super Alloy, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2 (PCIe Gen4x4), ASRock POST Status Checker (PSC), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update.
Памет:

DDR4
Брой слотове:

4 DIMM Slots; Max. capacity of system memory: 128GB; Dual Channel DDR4 Memory Technology, Supports Extreme Memory Profile (XMP) memory modules.
